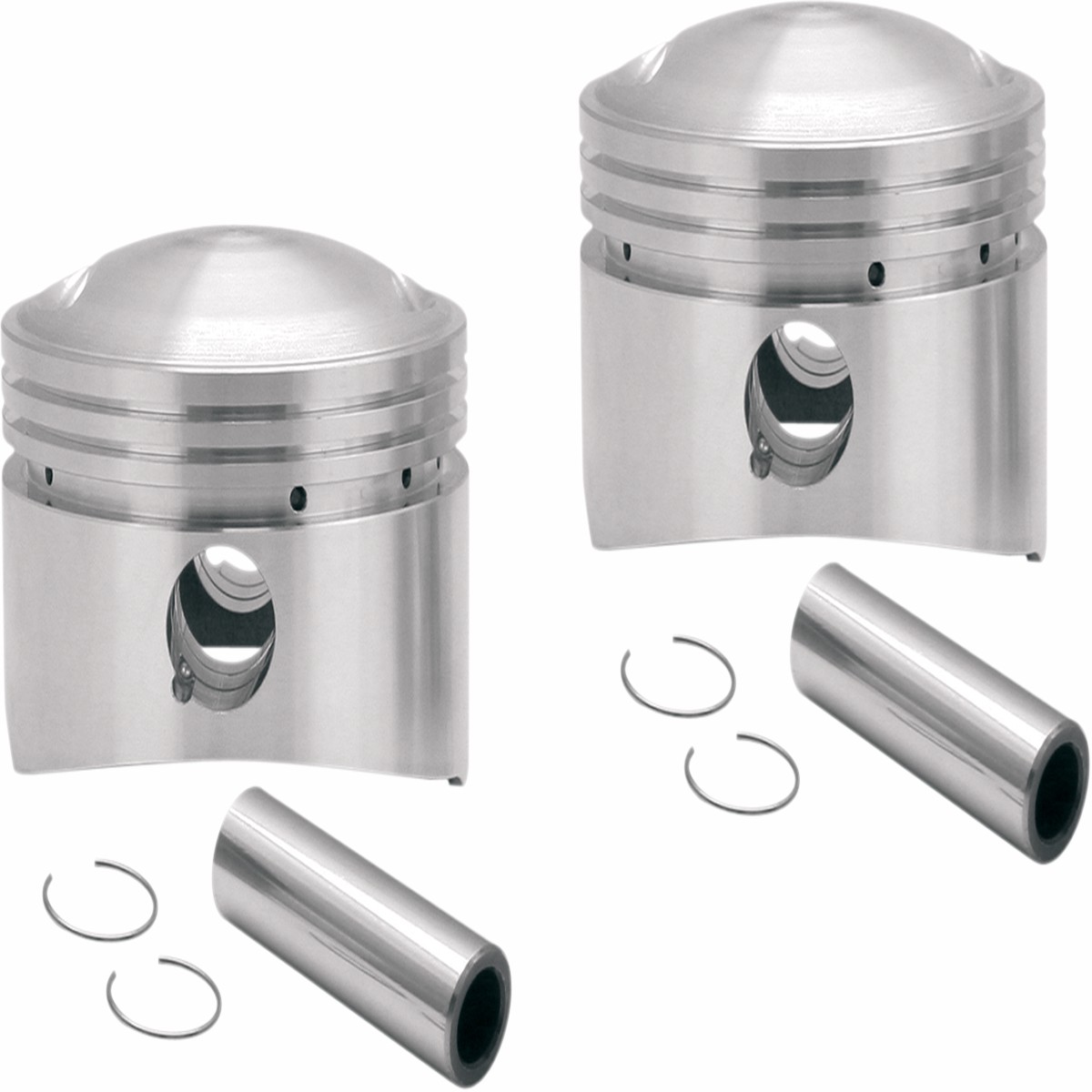

These forged 3 5/8″ bore stroker piston replaces several cast and forged big bore pistons that S&Spreviously offered. Applications for this piston include 88″ (4 1/4″ stroke), 93″ (4 1/2″ stroke), and 96″ (4 5/8″ stroke) engines with stock 8 1/2″ diameter flywheels, and 98″ (4 3/4″ stroke) and 103″ (5″ stroke) engines with 8 1/4″ small diameter flywheels. As with the new stock bore stroker piston, the modern metallurgy and advanced skirt profiles allow a relatively close piston fit for low engine noise and long engine life. S&Swill fit these pistons to your existing cylinders (when purchasing new cylinders, pistons can be fit to them as an option).
- Forged pistons for superior strength
- Modern alloys and piston skirt profiles for low noise and long engine life
- Includes set of pistons, rings, wristpins, and clips
NOTES:Compression ratios will change when replacing existing pistons in S&S engines with this series of forged pistons. If higher compression is desired, we suggest shortening cylinders, or decking heads to achieve the desired compression ratio. A change of .060″ will produce approximately 1 point of change in the compression ratio. S&S offers machine shop services through the S&S Service and Speed Center. New pistons can be fit to your existing cylinders for a reasonable charge, and cylinders can be shortened to your specifications if higher compression ratio is desired.
Fitment Guide
| 1984 |
Harley-Davidson |
FLHX Electra Glide Special |
– |
– |
| 1983-1984 |
Harley-Davidson |
FXSB Low Rider – Belt |
– |
– |
| 1983 |
Harley-Davidson |
Electra Glide Standard FLHT |
– |
– |
| 1983 |
Harley-Davidson |
FLHTC Electra Glide Classic |
– |
– |
| 1983 |
Harley-Davidson |
FXDG Disc Glide |
– |
– |
| 1983 |
Harley-Davidson |
FXRT Sport Glide |
– |
– |
| 1982-1983 |
Harley-Davidson |
Super Glide II FXRS |
– |
– |
| 1982-1983 |
Harley-Davidson |
FXR Super Glide II |
– |
– |
| 1981-1983 |
Harley-Davidson |
FLTC Tour Glide Classic |
– |
– |
| 1981-1982 |
Harley-Davidson |
Electra Glide Classic FLH |
– |
– |
| 1981 |
Harley-Davidson |
FXEF Fat Bob |
– |
– |
| 1981 |
Harley-Davidson |
Electra Glide Heritage FLH |
– |
– |
| 1980-1984 |
Harley-Davidson |
FXWG Wide Glide |
– |
– |
| 1980-1983 |
Harley-Davidson |
FLT Tour Glide |
– |
– |
| 1980-1982 |
Harley-Davidson |
FLHS Electra Glide Sport |
– |
– |
| 1980-1982 |
Harley-Davidson |
FXB Sturgis |
– |
– |
| 1980 |
Harley-Davidson |
Tour Glide Classic FLTC |
– |
– |
| 1979-1980 |
Harley-Davidson |
1200 Super Glide FXE |
– |
– |
| 1979-1980 |
Harley-Davidson |
Super Glide 80 FXE |
– |
– |
| 1979-1980 |
Harley-Davidson |
1200 Fat Bob FXEF |
– |
– |
| 1979-1980 |
Harley-Davidson |
Fat Bob FXEF |
– |
– |
| 1979 |
Harley-Davidson |
Low Rider FXS |
– |
– |
| 1979 |
Harley-Davidson |
1200 Low Rider FXS |
– |
– |
| 1979 |
Harley-Davidson |
Electra Glide FLH |
– |
– |
| 1977-1978,1980-1982 |
Harley-Davidson |
FXS Low Rider |
– |
– |
| 1974-1978,1981-1984 |
Harley-Davidson |
FXE Super Glide |
– |
– |
| 1971-1978 |
Harley-Davidson |
FX Super Glide |
– |
– |
| 1970-1978,1980-1984 |
Harley-Davidson |
FLH Electra Glide |
– |
– |
| 1966-1980 |
Harley-Davidson |
Electra Glide FL |
– |
– |
| 1966-1969,1978-1980 |
Harley-Davidson |
1200 Electra Glide FLH |
– |
– |
Specs
| PRODUCT NAME |
PISTON KIT |
| BORE SIZE |
3.655″ |
| BORE – OVERSIZE |
+0,030″ |
| BORE OVERSIZE |
+0.030″ |
| UNITS |
KIT |
| RIDING STYLE |
STREET |
